Flexible tubes

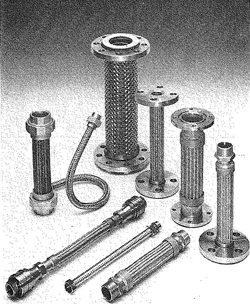

‧Products introduction:

Especially, as the world-wide trend , large-sized pipe lines under high temperature and high pressure have become highlighted rapidly , and as naturel result, the demand for high strength , highly heat-resistant and pressure-resistant metallic Flexible hoses that facilitate piping work has been increasing.
TAI YUNG Type Flexible Tubes are manufactured under strict quality control with responsibility , with our own perfect equipment throughout the whole processes from the materials pipes to the finished products and we are presenting quality that fully meet the requirements and satisfaction of the industries.
‧Application of Flexible Tube:
For Absorbing Axial Displacement and Movement
For Absorbing Axial Horizontal Movement
For Absorbing Axial Vertical(Up-Down) Movement
For Permanent Bend Pipes
For Absorbing Vibration
For Absorbing Disordered Movement
Suitable in steam , oil , air , gas or L.P. gas and other products that needs twisting or vibrating movements.
For Absorbing Axial Horizontal Movement
For Absorbing Axial Vertical(Up-Down) Movement
For Permanent Bend Pipes
For Absorbing Vibration
For Absorbing Disordered Movement
Suitable in steam , oil , air , gas or L.P. gas and other products that needs twisting or vibrating movements.

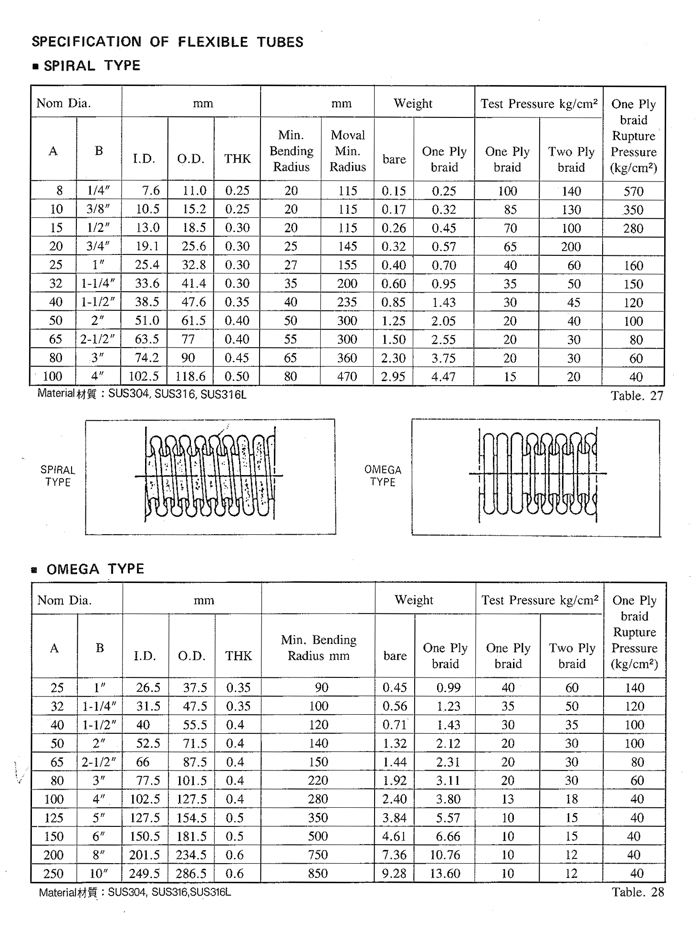

‧Specification:

‧Catalog:

Product Name | FT-1000 - UU type | ||||||
Spec |
|

Product Name | FT-3000 - SNtype | ||||||
Spec |
|

Product Name | FT-7000 - FRPtype | ||||||||||
Spec |
|
