Bellows
‧Products introduction:
Modern technology on the demand for high-quality piping system, often used for high and low temperature fluid medium, which has prompted joints and related materials more important. In the piping system, stainless steel expansion joint works and vibration absorption effect of corrosion, heat, pressure and other excellent features, has been widely used on automobile, shipbuilding, construction, mechanical structure, the chemical industry, gas piping, nuclear engineering and many other industries.
Stainless steel expansion joints has replaced the minimum length of the rubber expansion joints design, and has a rubber joints unable to reach a high temperature, high pressure advantages possessed the presence of cracks aging, depression, shedding doubts. Fire safety features to comply with fire safety requirements, able to maintain a high standard of cleanliness of the fluid, and it could be suitable for the use of drinking water pipeline. Recyclable product (manufactured into other metal products) can be re-melting, without the difficulty of recycling and reuse of waste rubber material and generate environmental problems.
‧Features:
  • Multi-convolutions, light weight, eazy to install.
  • Bellows are U-type, can eliminate the disadvantage of stress concentration, vibration insulation effect.
  • Bellows made ​​of a multi-layer stainless steel sheet, can provide a highly efficient vibration or oscillation insulation and high safety.
  • The material is a high flexibility (low modulus of elasticity), with the best vibration absorption properties, not only have the same effect with the rubber expansion joints and more long service life.
  • Multilayer composite process fluid through the tube resonance, can reduce fluid flow re-noise.
  • Bellows made ​​of a multilayer stainless steel plate having superior to the other characteristics can not be made ​​of a rubber material: aging resistance, high temperature resistance, UV radiation, corrosion resistance can be achieved.
    • ‧Application of Bellows:
  • Connected in rotational oscillation mechanical piping system.
  • Prevent pumps, compressors, engines, burners connecting pipe vibration and noise.
  • Ship engine cooling circulating water pipe connection.
  • Home (cold air conditioning, heating device) and industrial (ventilation blowers, heat exchangers), and so on.
  • Oil refineries, water treatment plants, sewage treatment plants, and so on.<
    • ‧Precautions:
  • Shock can correct arrangement and installation fittings to achieve the most effective applications.
  • The flexible joint should be as safe to remove the device accompanied by the back-end oscillation in the position close to the source of vibration.
  • The oscillation swing laterally offset, the absorber can be installed in the farthest place is also a way to make the axial direction with an appropriate angle, and the vibration can be generated within this range.
    • The use of expansion joints Expansion joint quality control and inspection Characteristics of expansion joints General construction expansion joints
    1. Quality control
  • Material Control
  • Welding method
  • Fatigue inspection
    		•  2. Shipment inspection
  • Pressure inspection
  • leak detection inspection
  • appearance inspection
  • Dimensional inspection
  • Other inspection
    		•  1. DAMAGE PIPE factors
  • The extension and contraction caused by temperature changes.
  • Mechanical vibrations.
  • Piping separation caused by subsidence of the building or facility superstructure imbalance.
  • Earthquakes　or wind pressure cause piping shake.
    		•
  • Ex -1000 Single free type
  • Ex -9000 Medium-pressure reinforcement type
  • Ex -9000 High-pressure reinforcement type
  • Ex -3000 Single high-pressure control ring type
  • Ex -4000 Double high-pressure control ring type
  • Ex -5000 Single external-pressure type
  • Ex -6000 Double external-pressure type
  • Universal type
  • ExF -2000 Shockproof joint
  • JIS B2352 JIS type,Double joint
    		•
    Specially constructed expansion joint The design of expansion joints The operation of expansion joint Flexible tubes
  • Hinged
  • Common hinged
  • Hanging type
  • Pressure balanced
  • Rectangular bellows
    		•
  • The conditions necessary for the design.
  • Pressure strength
  • Expansion Amount
  • The reaction force of expansion.
  • Life cycles
  • The amount of heat stretching.
    		•
  • ANCHOR fixed point
  • GUIDE supports
  • Precautions
    		•
  • Stainless steel flexible tubes specifications.
  • Technical information.
  • Stainless steel high-pressure flexible tubes & joint type.
  • The proper use of high-pressure flexible tubes.
    		•
    ‧Catalog:
    Product NameSingle free type
    Spec

    Product CategoryStainless steel bellows
    Product No.EX-1000
    Pressure-1kg/cm2 ~ 3kg/cm2
    ApplicationApplies to gas pipes, exhaust pipes, boilers, etc., in order to prevent the engine, blower and pump vibration entrances.
    Product Name Medium-pressure guide stopper type
    Spec

    Product CategoryStainless steel bellows
    Product No.EX-9000
    ApplicationFor gas pipes, blowers, steam tubes.

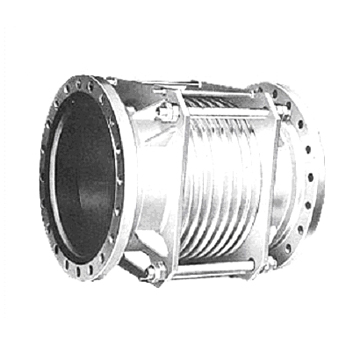

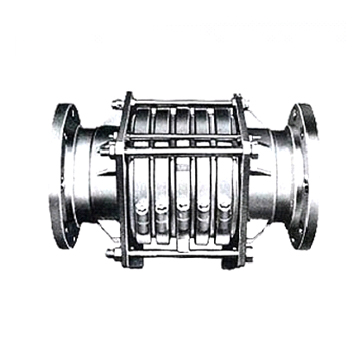

    Product Name Single high-pressure control ring type
    Spec

    Product CategoryStainless steel bellows
    Product No.EX-3000
    Pressure2Kg/cm2~200Kg/cm2
    ApplicationApplies to high-pressure steam piping, and heavy oil, chemical, and other high-pressure piping

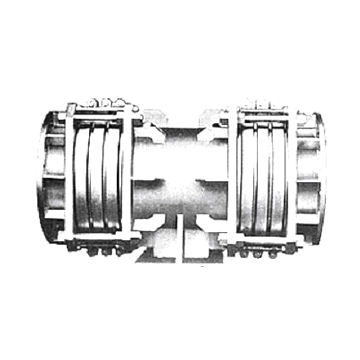

    Product Name Deuble high-pressure control ring type
    Spec

    Product CategoryStainless steel bellows
    Product No.EX-4000
    Pressure2Kg/cm2~200Kg/cm2
    ApplicationSuitable for high pressure piping expansion and contraction of its high frequency of occasions for the EX-3000 duplex type.

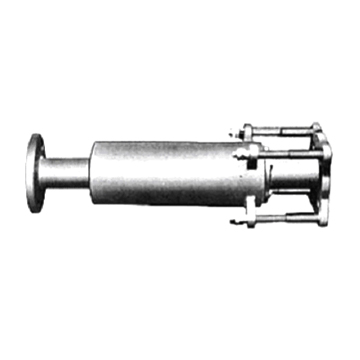

    Product NameSingle external-pressure type
    Spec

    Product CategoryStainless steel bellows
    Product No.EX-5000
    Pressure2Kg/cm2~16Kg/cm2
    ApplicationSteam pipes, water pipes, etc.

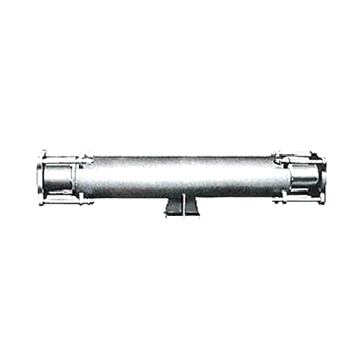

    Product NameDouble external-pressure type
    Spec

    Product CategoryStainless steel bellows
    Product No.EX-6000
    Pressure2Kg/cm2~16Kg/cm2
    ApplicationSteam pipes, water pipes, etc.

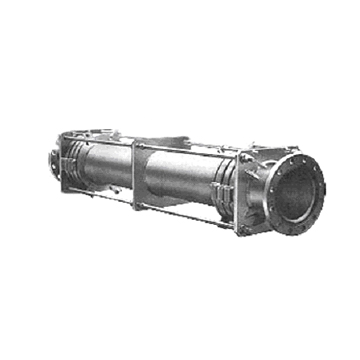

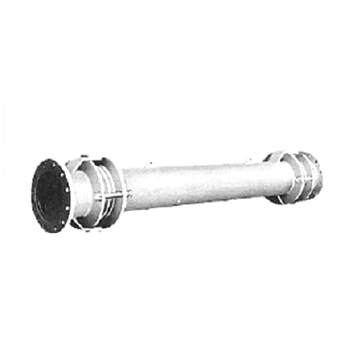

    Product NameUniversal type
    Spec

    Product CategoryStainless steel bellows
    Product No.EX-0007
    Pressure-2Kg/cm2~20Kg/cm2
    ApplicationFeature:
    The universal type constrains interanl pressure thrust by connecting two bellows with tie rod bolts to permit pipes to be angularly displaced and absorb lateral (perpendicular to the axis of pipe) deflection.
    Application:
    Piping which is too complex to be fixed, connection to apparatus, countermeasure against uneven subsidence of oil tank earthquake, and others.

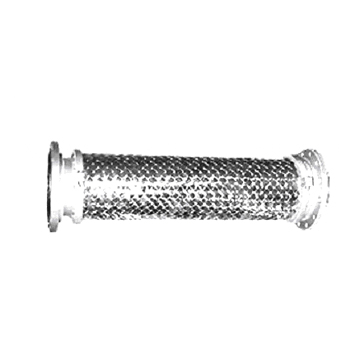

    Product NameFlexible joint
    Spec

    Product CategoryStainless steel bellows
    Product No.EX-1000
    Pressure-1kg/cm2 ~ 3kg/cm2
    ApplicationThe recent subsidence of the ground in coastal industrial zones is so remarkable that we have to consider countermeasures with respect to ground piping and the like.Flexible joints are needed, especially for connecting piping to constructions such as oil tanks, etc.Also the necessity of flexible joints is demonstrated for prevention of disasters caused by earthquake, etc. Hence we are obliged to mount flexible joints on oil tanks.
    Construction:
    The outside of the bellow is made in the same way as the Expansion joint, blade armored with band steel (stainless steel, etc.) so as to provide high yield strength.
    Application:
    Piping for oil tank, etc., prevention of vibration caused by air compressor, prevention of thermal stress, connection of exhaust pipe in high speed diesel engine.

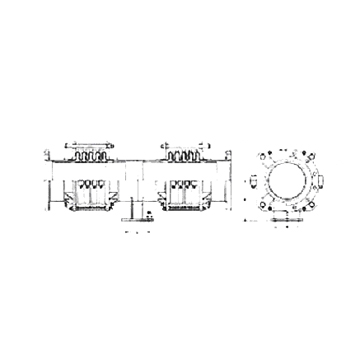

    Product NameDouble high-pressure joint
    Spec

    Product CategoryStainless steel bellows
    Product No.JIS B2352
    ApplicationPlease contact for detail.

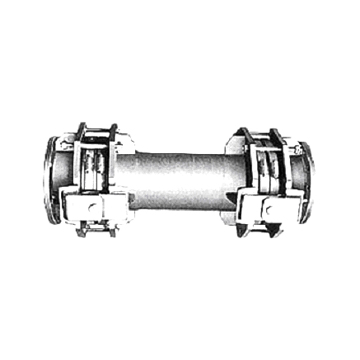

    Product NameHinged
    Spec

    Product CategoryStainless steel bellows
    Product No.Ex-0011
    ApplicationThe hinged type constrains the internal pressure thrust by the hinge arm and hinge pin mounted on the side of the bellow and absorbs the expansion and contraction by bending the bellows.
    1. Since the internal pressure thrust is constrained by the hinge the load is not applied on the fixing point.
    2. It is constructed to absorb lateral displacement by a bending action, so that large lateral displacement (Y) is permitted by lengthening the intermediate pipe.
    3. When expansion and contraction in two directions are simultaneously absorbed, three hinge types are mounted to be operated.
    4. The weight of the intermediate pipe is supported by the hinge arm so that it does not affect the bellows.
    5. The hinge type does not need the fixing point so it can reduce the piping cost.
    Product NameCommon hinged
    Spec

    Product CategoryStainless steel bellows
    Product No.Ex-0012
    ApplicationPlease contact for detail.
    Product NameGimbal
    Spec

    Product CategoryStainless steel bellows
    Product No.Ex-0013
    Pressure2Kg/cm2~200Kg/cm2
    ApplicationFeature:
    The gimbal type is characterized by the hinge plates and hinge pins mounted in the same way as on the hinge type gembal ring, inserted between the plates to bias the position of the pin by 90 degrees. It is operated so as to absorb the angular displacement not only in one direction, but also in many directions around th pin.
    Application:
    For cases where expansion and contraction in two different directions should be simultaneously absorbed.

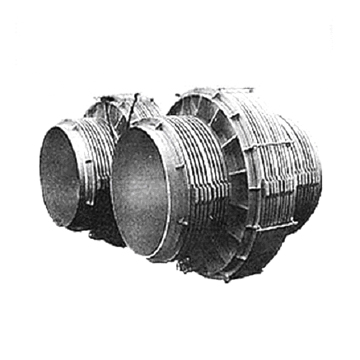

    Product NameL-Type pressure balanced
    Spec

    Product CategoryStainless steel bellows
    Product No.Ex-0014
    Pressure2Kg/cm2~20Kg/cm2
    ApplicationFeature:
    The L type balance has the left and right ends of the bend pipe provided with bellows. The bellows at the outer bend pipe provided with bellows. The bellows at the outer side of the bend pipe is blinded. It is constructed so that the internal pressure is simultaneously applied on this blinded bellows by uniform pressure pipe. Further, these two bellows are constraind by tie rod bolts to be operatable left and right about the bend pipe. This operation corresponds to the so called expansion and contraction operation.
    The internal pressure thrust also acts on the blind bellows so that the expansion of this bellows brings about the contraction of another bellows connected thereto by the tie rod bolts, whereupon the thrusts extinguish each other to provide a balanced condition for facilitating expansion and contraction. This L type balance is mounted on the bend portion to be capable of absorbing not only the axial expansion and contraction, but simultaneously the lateral displacement by providing another bellows.
    Application:
    Crude oil line, blast pipe, crossover pipe, gas holder, etc.

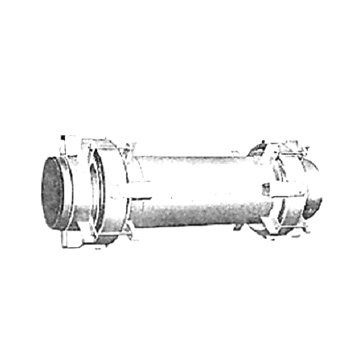

    Product NameS-Type pressure balanced
    Spec

    Product CategoryStainless steel bellows
    Product No.Ex-0015
    Pressure2Kg/cm2~20Kg/cm2
    ApplicationFeature:
    The S type balance, like the L type balance is provided with one bellow for balancing, on which bellows the internal pressure is applied to utilize its thrust for balancing. First, Two bellows are provided, one bellows having two times the sectional area of the former. An internal pipe, worked like comb inside the bellows, makes the outer and inner bellows cross-link and communicate with each other. With the internal pressure applied, the thrust acts on the large outer bellows to expand it, while compressing the internal bellows connected to the outer one by the internal pipe... thus the thrust is extinguished by one another to make the bellows expand and contract easily.
    The S type balance is an epochmaking expansion join that can easily expand and contract by only spring reaction since it is installed on the straight pipe portion and the thrust does not act.
    Application:
    Piping for crude oil, blast pipe, steam pipe, etc. that cannot be fixed.

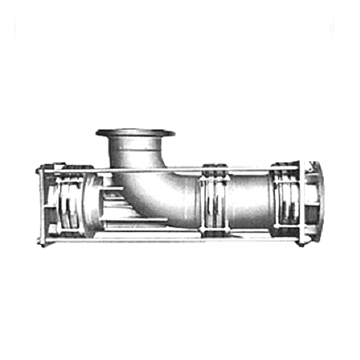

    Product NameT-Type pressure balanced
    Spec

    Product CategoryStainless steel bellows
    Product No.Ex-0016
    Pressure2Kg/cm2~20Kg/cm2
    ApplicationFeature:
    Though the prior straight pipe balance (S type balance) is constructed to expand and contract by the use of at least 3 bellows and the extinguishing of the interanl pressure thrust, this T type balance is quite a new invention that uses two bellows to achieve balance. This balance regarded also as the modification of the L type. provides a straight pipe type of balance by applying the principle of eccentric cam to bend a blind bellows 90 degrees.
    This T type balance is characterized in that:
    1. the outside diameter is small.
    2. it can be mounted in any direction, upward, downward, left and right.
    3. it can also easily be mounted on the parallel piping.
    4. the spring reaction of the bellows is relatively little.
    5. it can utilize protrusions for vent and drain and so forth.

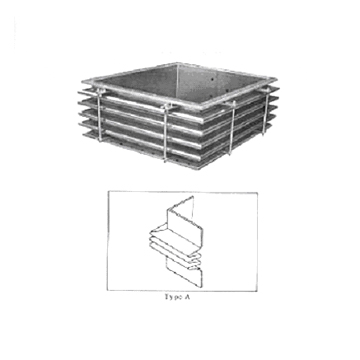

    Product NameRectangular single miter corner
    Spec

    Product CategoryStainless steel bellows
    Product No.Ex-0017
    ApplicationApplication:
    flue, duct, outlet of blower, etc.
    Product NameRectangular rounded corner
    Spec

    Product CategoryStainless steel bellows
    Product No.Ex-0018
    ApplicationApplication:
    flue, duct, outlet of blower, etc.

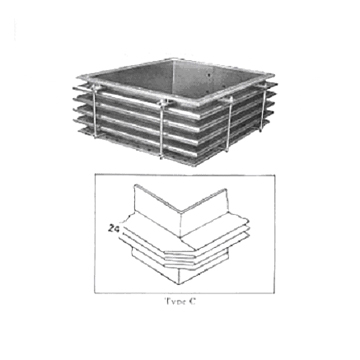

    Product NameRectangular camera corner
    Spec

    Product CategoryStainless steel bellows
    Product No.Ex-0019
    ApplicationApplication:
    flue, duct, outlet of blower, etc.
