現代科技對高品質管路系統的需求，經常要用於高、低溫流體介質，因而促使相關物料之接頭與防震性格外重要。在配管系統中，由於不銹鋼伸縮的防震接頭動作及震動吸收具有耐蝕、耐熱、耐壓等極佳特性效果，而被廣泛應用於；汽車、造船、建築、機械結構、化學工業、瓦斯配管、核能工程等多項產業。
不銹鋼防震接頭是以取代橡膠防震軟管之最短長度設計而成，並具有橡膠防震接頭無法達成的耐高溫、耐高壓優點，且具有無龜裂老化、凹陷、脫落等疑慮。在防火功能上可符合消防要求，亦能保持流體高度清潔，故能適合飲用水管路使用。在產品使用後可回收再利用(可重新熔解後製造成其他之金屬用品)，而無橡膠材料之廢棄回收再利用之難度及產生環保問題。

‧產品特性:

山數密度高、重量輕、容易安裝。

伸縮管(Bellows)可消除應力集中缺點，震動絕緣效果大。

以多層不銹鋼板製成的伸縮管，能提供高效的震動或振盪絕緣及高安全度。

使用材質屬高柔韌性(彈性係數低)，與最理想的震動吸收性質，不僅與橡膠防震接頭有相同的效果且更具較長的使用壽命。

以多層鋼板疊合製成，可因管內流體通過而產生共振，可降低流體流重噪音。

以多層不銹鋼板製成的伸縮管，具有優於以橡膠材質製成而無法所能達到：抗老化性、耐高溫、抗UV 輻射線、抗蝕性等特性。

‧適用場地:

在轉動振盪機械的管路系統中連接用。

可防止幫浦、壓縮機、引擎、燃燒器等連接管的振動與噪音。

船舶引擎冷卻循環水管連接用。

住家(空調冷、暖氣裝置)與工業(換氣用鼓風機、熱交換器)等等。

煉油廠、水處理廠、污水處理廠等。

‧注意事項:

正確的排列與安裝能使防震接頭達到最有效的應用。

防震接頭必須儘可能安在靠近振動源位置上，以消除後端所伴隨的裝置引起振盪。

振盪擺幅作橫向偏移，可在最遠的地方安裝吸收器亦是一種方式，使軸向上有一適當角度，而振動能在該範圍內產生。

伸縮接頭的用途	伸縮接頭的品質管制及檢驗	伸縮接頭的特色	伸縮接頭一般構造
1. 品質管制材質控管焊接方法疲勞檢驗	2. 出貨檢驗壓力檢驗測漏檢驗外表檢驗尺寸檢驗其他檢驗	1. 損傷配管因素溫度變化所產生的伸張與收縮機械震動地層下陷使建築物或工廠的上部構造不平衡而造成管路分離地震或風壓導致管路搖動	Ex -1000 單式自由式 Ex -9000 中壓用補強板型 Ex -9000 高壓用補強板型 Ex -3000 單式高壓控制環型 Ex -4000 複式高壓控制環型 Ex -5000 單式外壓型 Ex -6000 複式外壓型萬向型 ExF -2000 防震接頭 JIS B2352 JIS 複式防震接頭

特殊構造的伸縮接頭	伸縮接頭的設計	伸縮接頭的操作	高壓軟管
鉸鏈型一般用鉸鏈型懸掛型壓力用平衡式方型伸縮囊	設計上必備的各項條件耐壓強度伸縮量伸縮反力壽命回數管的受熱伸張量	ANCHOR 固定點 GUIDE 支點注意事項	不銹鋼高壓軟管規格技術資料不銹鋼高壓軟管接頭種類 TUBE 高壓軟管正確使用方法

‧產品型錄:

產品名稱

單式自由型

產品介紹

產品類別	不銹鋼伸縮接頭

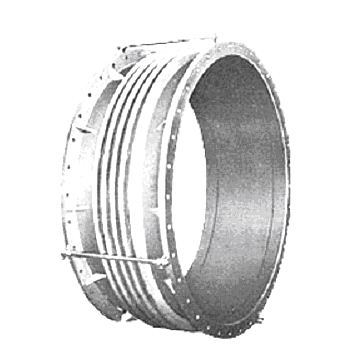

產品編號	EX-1000
壓力	-1kg/cm2 ~ 3kg/cm2
產品用途	適用於瓦斯管,排氣管,鍋爐等,以防止引擎,鼓風機及幫浦出入口的震動

產品名稱

中壓補強版型

產品介紹

產品類別	不銹鋼伸縮接頭
產品編號	EX-9000
產品用途	適用於瓦斯管，鼓風機，蒸汽管等。

產品名稱

單式高壓控制環型

產品介紹

產品類別	不銹鋼伸縮接頭
產品編號	EX-3000
壓力	2Kg/cm2~200Kg/cm2
產品用途	適用於高壓蒸氣配管,及重油,化學,等高壓配管

產品名稱

複式高壓控制環型

產品介紹

產品類別	不銹鋼伸縮接頭
產品編號	EX-4000
壓力	2Kg/cm2~200Kg/cm2
產品用途	適用於高壓配管其膨脹及收縮頻率高之場合，為EX-3000之複式型。

產品名稱

單式外壓型

產品介紹

產品類別	不銹鋼伸縮接頭
產品編號	EX-5000
壓力	2Kg/cm2~16Kg/cm2
產品用途	蒸氣管,熱水配管等

產品名稱

複式外壓型

產品介紹

產品類別	不銹鋼伸縮接頭
產品編號	EX-6000
壓力	2Kg/cm2~16Kg/cm2
產品用途	蒸氣管,熱水配管等

產品名稱

萬向型

產品介紹

產品類別	不銹鋼伸縮接頭
產品編號	EX-0007
壓力	-2Kg/cm2~20Kg/cm2

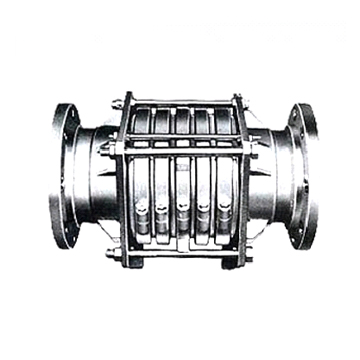

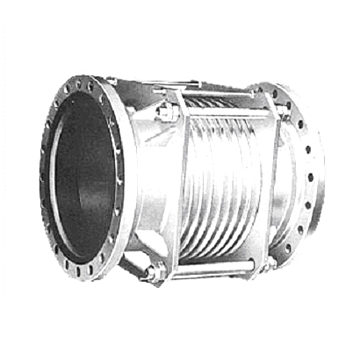

產品用途	Feature: The universal type constrains interanl pressure thrust by connecting two bellows with tie rod bolts to permit pipes to be angularly displaced and absorb lateral (perpendicular to the axis of pipe) deflection. Application: Piping which is too complex to be fixed, connection to apparatus, countermeasure against uneven subsidence of oil tank earthquake, and others.

產品名稱

防震接頭

產品介紹

產品類別	不銹鋼伸縮接頭
產品編號	EX-1000
壓力	-1kg/cm2 ~ 3kg/cm2

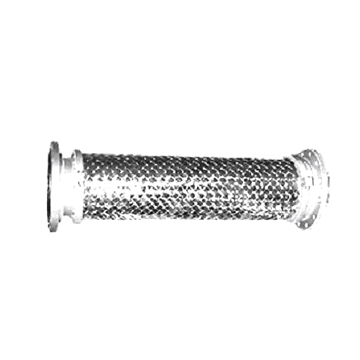

產品用途	The recent subsidence of the ground in coastal industrial zones is so remarkable that we have to consider countermeasures with respect to ground piping and the like.Flexible joints are needed, especially for connecting piping to constructions such as oil tanks, etc.Also the necessity of flexible joints is demonstrated for prevention of disasters caused by earthquake, etc. Hence we are obliged to mount flexible joints on oil tanks. Construction: The outside of the bellow is made in the same way as the Expansion joint, blade armored with band steel (stainless steel, etc.) so as to provide high yield strength. Application: Piping for oil tank, etc., prevention of vibration caused by air compressor, prevention of thermal stress, connection of exhaust pipe in high speed diesel engine.

產品名稱

複式接頭

產品介紹

產品類別	不銹鋼伸縮接頭
產品編號	JIS B2352
產品用途	Please contact for detail.

產品名稱

特殊構造的伸縮接頭

產品介紹

產品類別	不銹鋼伸縮接頭
產品編號	EX-0010

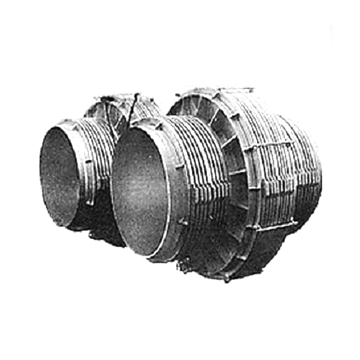

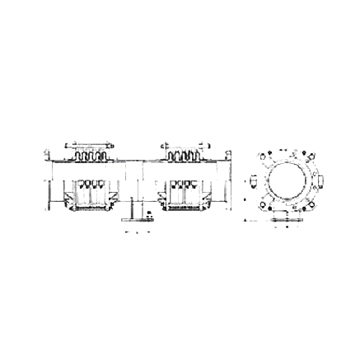

產品用途	The present state of the piping wih a large aperture ratio and high pressure provides a short cut to the rationalizaion of industry. Generally the thrust due to internal fluid pressure is applied at fixing point of the piping using expansion joint. Aerial piping having high pressure and a large aperture can not have the fixing point subjected to this thrust without becoming very expensive. To solve this fixation problem, we have developed a specially contructed expansion joint.

產品名稱

鉸鏈型

產品介紹

產品類別	不銹鋼伸縮接頭
產品編號	Ex-0011

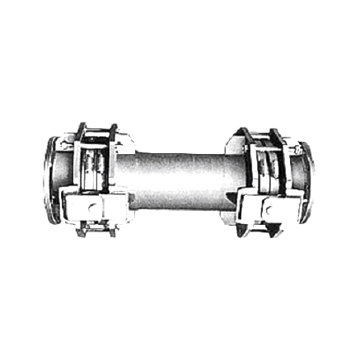

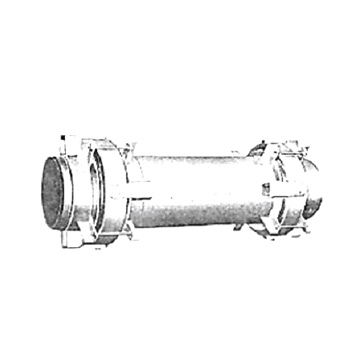

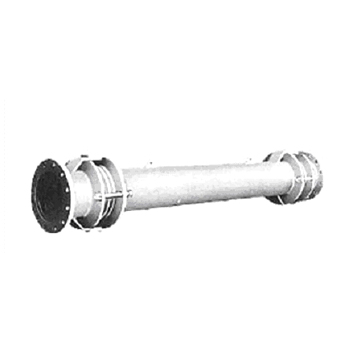

產品用途	The hinged type constrains the internal pressure thrust by the hinge arm and hinge pin mounted on the side of the bellow and absorbs the expansion and contraction by bending the bellows. 1. Since the internal pressure thrust is constrained by the hinge the load is not applied on the fixing point. 2. It is constructed to absorb lateral displacement by a bending action, so that large lateral displacement (Y) is permitted by lengthening the intermediate pipe. 3. When expansion and contraction in two directions are simultaneously absorbed, three hinge types are mounted to be operated. 4. The weight of the intermediate pipe is supported by the hinge arm so that it does not affect the bellows. 5. The hinge type does not need the fixing point so it can reduce the piping cost.

產品名稱

一般用鉸鏈型

產品介紹

產品類別	不銹鋼伸縮接頭
產品編號	Ex-0012
產品用途	Please contact for detail.

產品名稱

懸掛型

產品介紹

產品類別	不銹鋼伸縮接頭
產品編號	Ex-0013
壓力	2Kg/cm2~200Kg/cm2
產品用途	Feature: The gimbal type is characterized by the hinge plates and hinge pins mounted in the same way as on the hinge type gembal ring, inserted between the plates to bias the position of the pin by 90 degrees. It is operated so as to absorb the angular displacement not only in one direction, but also in many directions around th pin. Application: For cases where expansion and contraction in two different directions should be simultaneously absorbed.

產品名稱

L型壓力平衡式

產品介紹

產品類別	不銹鋼伸縮接頭
產品編號	Ex-0014
壓力	2Kg/cm2~20Kg/cm2

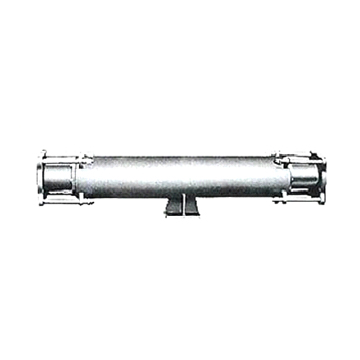

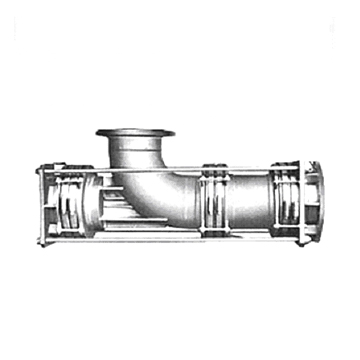

產品用途	Feature: The L type balance has the left and right ends of the bend pipe provided with bellows. The bellows at the outer bend pipe provided with bellows. The bellows at the outer side of the bend pipe is blinded. It is constructed so that the internal pressure is simultaneously applied on this blinded bellows by uniform pressure pipe. Further, these two bellows are constraind by tie rod bolts to be operatable left and right about the bend pipe. This operation corresponds to the so called expansion and contraction operation. The internal pressure thrust also acts on the blind bellows so that the expansion of this bellows brings about the contraction of another bellows connected thereto by the tie rod bolts, whereupon the thrusts extinguish each other to provide a balanced condition for facilitating expansion and contraction. This L type balance is mounted on the bend portion to be capable of absorbing not only the axial expansion and contraction, but simultaneously the lateral displacement by providing another bellows. Application: Crude oil line, blast pipe, crossover pipe, gas holder, etc.

產品名稱

S型壓力平衡式

產品介紹

產品類別	不銹鋼伸縮接頭
產品編號	Ex-0015
壓力	2Kg/cm2~20Kg/cm2

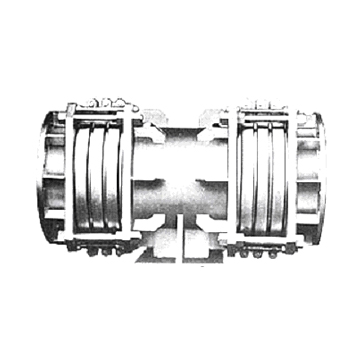

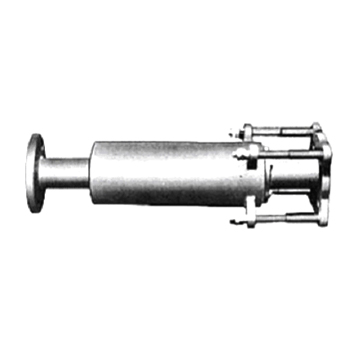

產品用途	Feature: The S type balance, like the L type balance is provided with one bellow for balancing, on which bellows the internal pressure is applied to utilize its thrust for balancing. First, Two bellows are provided, one bellows having two times the sectional area of the former. An internal pipe, worked like comb inside the bellows, makes the outer and inner bellows cross-link and communicate with each other. With the internal pressure applied, the thrust acts on the large outer bellows to expand it, while compressing the internal bellows connected to the outer one by the internal pipe... thus the thrust is extinguished by one another to make the bellows expand and contract easily. The S type balance is an epochmaking expansion join that can easily expand and contract by only spring reaction since it is installed on the straight pipe portion and the thrust does not act. Application: Piping for crude oil, blast pipe, steam pipe, etc. that cannot be fixed.

產品名稱

T型軸線壓力平衡型

產品介紹

產品類別	不銹鋼伸縮接頭
產品編號	Ex-0016
壓力	2Kg/cm2~20Kg/cm2

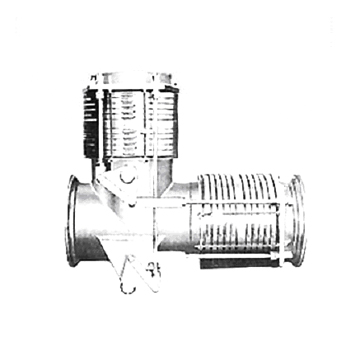

產品用途	Feature: Though the prior straight pipe balance (S type balance) is constructed to expand and contract by the use of at least 3 bellows and the extinguishing of the interanl pressure thrust, this T type balance is quite a new invention that uses two bellows to achieve balance. This balance regarded also as the modification of the L type. provides a straight pipe type of balance by applying the principle of eccentric cam to bend a blind bellows 90 degrees. This T type balance is characterized in that: 1. the outside diameter is small. 2. it can be mounted in any direction, upward, downward, left and right. 3. it can also easily be mounted on the parallel piping. 4. the spring reaction of the bellows is relatively little. 5. it can utilize protrusions for vent and drain and so forth.

產品名稱

方形伸縮囊 - A型

產品介紹

產品類別	不銹鋼伸縮接頭
產品編號	Ex-0017
產品用途	Application: flue, duct, outlet of blower, etc.

產品名稱

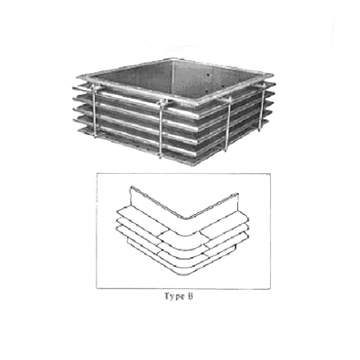

方形伸縮囊 - B型

產品介紹

產品類別	不銹鋼伸縮接頭
產品編號	Ex-0018
產品用途	Application: flue, duct, outlet of blower, etc.

產品名稱

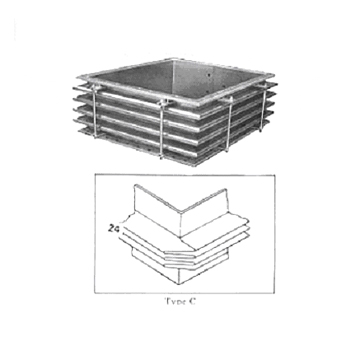

方形伸縮囊 -C型

產品介紹

產品類別	不銹鋼伸縮接頭
產品編號	Ex-0019
產品用途	Application: flue, duct, outlet of blower, etc.
